If you’ve ever shopped for a “real” hardshell jacket — Arc’teryx, Patagonia, The North Face Summit Series — you’ve seen the terms 3L, 2.5L, and 2L in product specs. These aren’t marketing fluff. They describe how the waterproof membrane is bonded into the fabric, and they massively impact the jacket’s performance, weight, and cost.
For brand owners spec’ing a hardshell line, this is the single most important construction decision you’ll make.
The Universal Components
Every laminated hardshell has three potential layers:
1. Face fabric (outer) — typically nylon or polyester, treated with DWR (durable water-repellent)
2. Waterproof membrane (middle) — GORE-TEX, eVent, Pertex Shield, or proprietary alternatives
3. Backer fabric or print (inner) — protects the membrane from oils and abrasion
The number (3L / 2.5L / 2L) describes how many of these layers are bonded together.
2L (2-Layer) Construction
Definition: Face fabric is bonded directly to the membrane. The inside of the membrane is then covered with a separate hanging liner (like the silky lining you find in many ski jackets).
Visual: When you look inside, you see a smooth taffeta or mesh liner — not the membrane itself.
Performance:
– ✅ Comfortable next-to-skin (the hanging liner is soft)
– ✅ Cheapest of the three construction types
– ❌ Heaviest (extra liner adds weight)
– ❌ Lowest breathability (3 layers of fabric to push moisture through)
– ❌ Bulkiest (won’t pack down as small)
Typical Cost (ex-factory, blank fabric): $8-15/yard
Typical Use: Entry-to-mid-price ski jackets, urban commute rain coats, value-priced outdoor brands
2.5L (Two-and-a-Half-Layer) Construction
Definition: Face fabric is bonded directly to the membrane. The membrane’s inner side is then printed or sprayed with a protective coating (often a polyurethane dot or grid pattern) instead of having a separate liner.

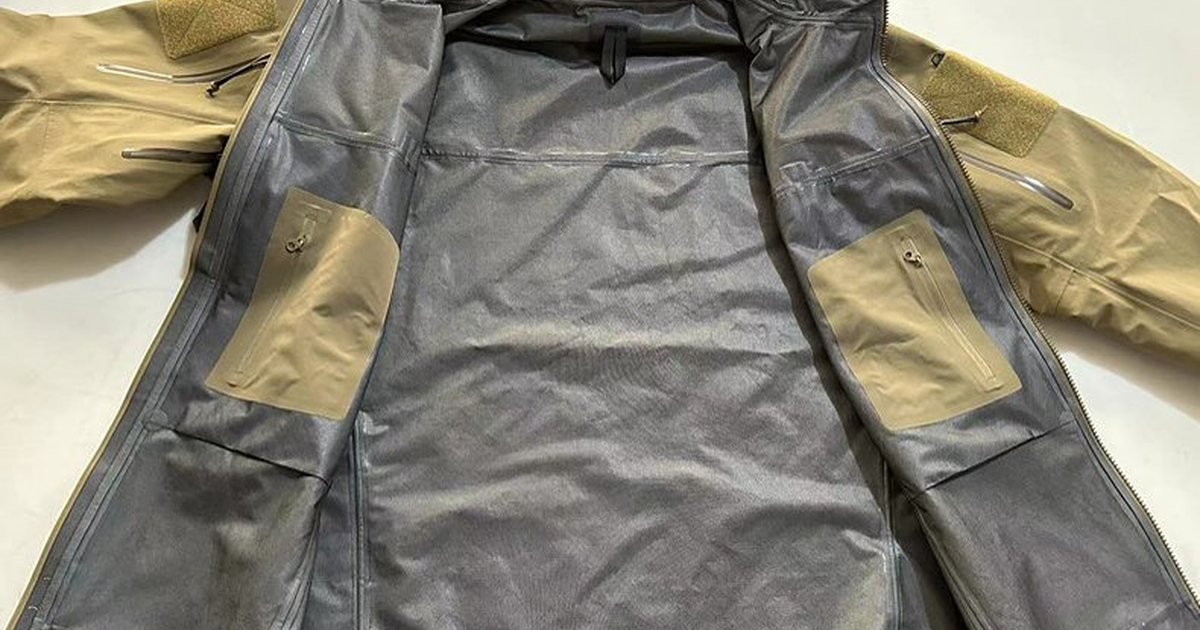

Visual: When you look inside, you see a slightly tacky printed/sprayed pattern on the membrane backing — no separate liner.
Performance:
– ✅ Lightest of the three (no separate liner)
– ✅ Most packable
– ✅ Cheaper than 3L
– ❌ Less durable than 3L (printed backing wears with abrasion against backpacks/clothing)
– ❌ Less comfortable directly against skin (slightly tacky feel)
– ❌ Membrane can deteriorate faster if sweat oils are not washed off regularly
Typical Cost: $10-18/yard
Typical Use: Ultralight rain shells, packable travel jackets, lightweight hiking shells, brands prioritizing weight savings
3L (3-Layer) Construction

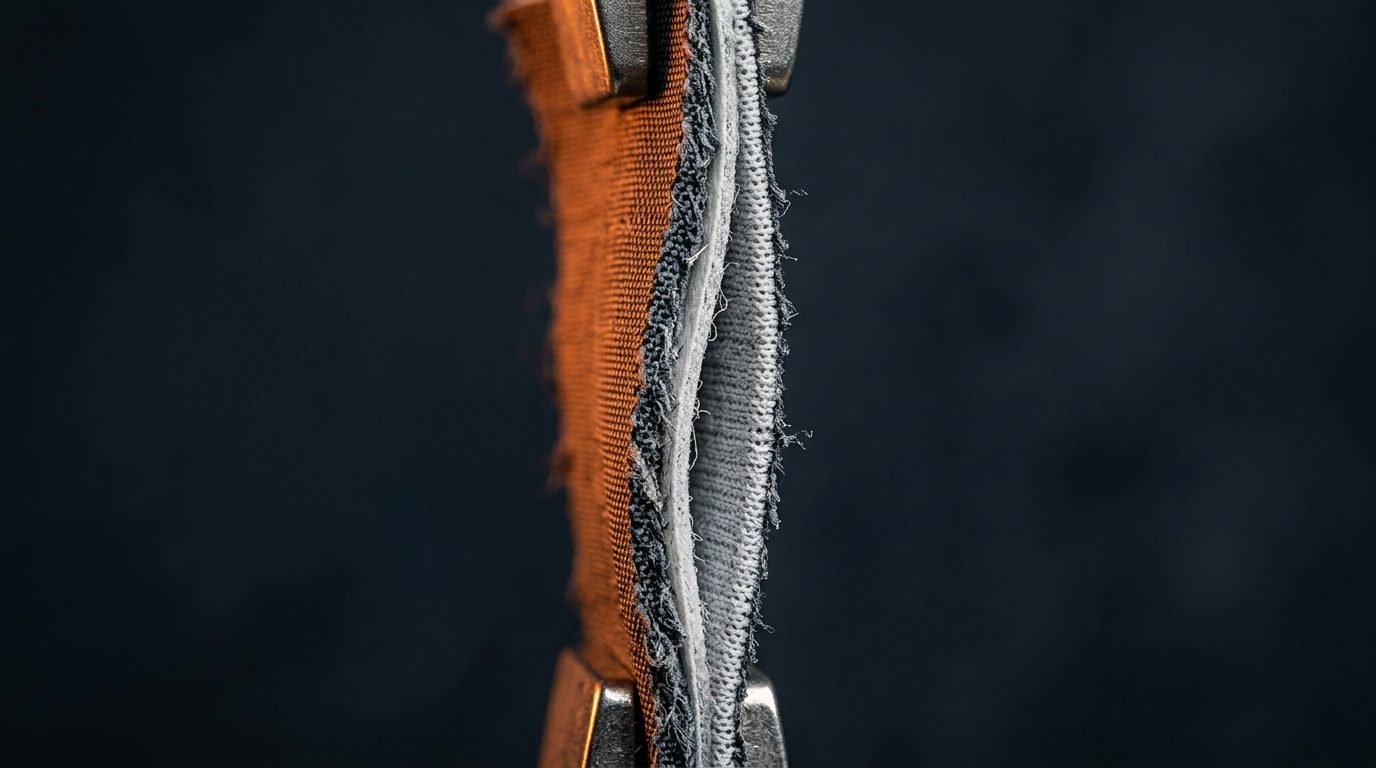

Definition: Face fabric is bonded to the membrane, which is bonded to a separate woven or knit backing fabric. All three layers form a single composite sheet.
Visual: When you look inside, you see a woven or knit backer fabric (not a separate liner, not a printed coating).
Performance:
– ✅ Most durable (backer protects membrane from sweat, oils, abrasion)
– ✅ Best breathability of the three (no liner to trap moisture)
– ✅ Highest performance ceiling (used in expedition and alpine gear)
– ❌ Heaviest of the three “single-piece” fabric weights
– ❌ Most expensive
– ❌ Stiffer hand-feel (until broken in)
Typical Cost: $18-45/yard (premium grades $50+/yard)
Typical Use: Alpine and expedition gear, premium hardshells, professional outdoor apparel
Side-by-Side Comparison
| Property | 2L | 2.5L | 3L |
|---|---|---|---|
| Weight (typical jacket) | 600-900g | 350-500g | 450-700g |
| Breathability | Lowest | Medium | Highest |
| Durability | Medium (liner protects) | Lowest | Highest |
| Comfort vs skin | Highest (soft liner) | Lowest (tacky backing) | Medium (soft backer) |
| Packability | Lowest | Highest | Medium |
| Cost (fabric) | Lowest | Medium | Highest |
| Best for | Casual outdoor, ski | Ultralight hiking, travel | Alpine, expedition, premium |
Membrane Choices Within Laminates
The membrane in any laminate can vary independently:
- GORE-TEX — industry gold standard, requires brand licensing
- eVent — premium alternative, more breathable but slightly less durable
- Pertex Shield — common in lightweight applications
- Polartec NeoShell — premium air-permeable membrane
- Generic PU / TPU membranes — China-made alternatives, 60-80% of GORE-TEX performance at 30-50% of cost
For most non-GORE-TEX brands, a quality Chinese PU/TPU membrane in 3L construction delivers 80-90% of premium performance at a fraction of the cost.
How This Affects Your Product Strategy
| If your brand targets… | Choose… |
|---|---|
| Entry-price rain shell at $60-100 retail | 2L with PU membrane |
| Mid-range hiking jacket at $150-250 retail | 2.5L with generic PU/TPU membrane |
| Premium hardshell at $300-450 retail | 3L with proprietary membrane (e.g., custom-branded PU) |
| Expedition / alpine at $500+ retail | 3L with GORE-TEX Pro or equivalent |
| Ultralight backpacking | 2.5L weight optimization |
| Long-life expedition gear | 3L durability |
Common Mistakes Brands Make
- Speccing 3L for a $80 retail product — Margins won’t work. Use 2L.
- Speccing 2.5L for a daily-wear product — Wear-through on inner backing in 1-2 seasons.
- Confusing “3L” with “3 waterproof ratings” — They’re different things (3L = construction, waterproof rating = mm hydrostatic head).
- Skipping seam taping on 2.5L or 3L — Membrane stops water through the fabric; only seam tape stops it through the stitching.
What to Ask Your Manufacturer
When sourcing hardshell production, get clear answers on:
1. What is the exact laminate construction? (2L / 2.5L / 3L)
2. What membrane is being used? (Branded vs generic)
3. What is the verified waterproof rating? (ISO 811 hydrostatic head, in mm)
4. What is the verified breathability rating? (ASTM E96, in g/m²/24h)
5. What seam-taping approach is used? (Fully-taped vs critically-taped)
6. What DWR finish? (PFC-free or legacy C8/C6)
7. What is the abrasion test rating? (Martindale or similar)
Bottom Line
For B2B brand owners launching a hardshell line:
– 2L = your entry-price option, comfortable and cheap
– 2.5L = your ultralight or travel option
– 3L = your premium / serious-performance option
Most successful outdoor brands ladder up through these constructions: launch with 2.5L or 2L at accessible price points, then add a 3L premium hero product once they have brand authority.
